Gazebo Spare Parts Ltd Roof Middle Connector – 5-Way – 26mm- 33mm Diameters Self Assembly Gazebo Parts

Item Description:
The Roof Middle Connector is the bracket located at the top of either of the two middle legs on a 3m x 6m self-assembly gazebos. It is used to join together four roof poles and the leg pole.
Material: Plastic
Colour: White

---

Dimensions of Roof Middle Connector:
Slotted arms: No
Height: 100mm (measured vertically in upright position)

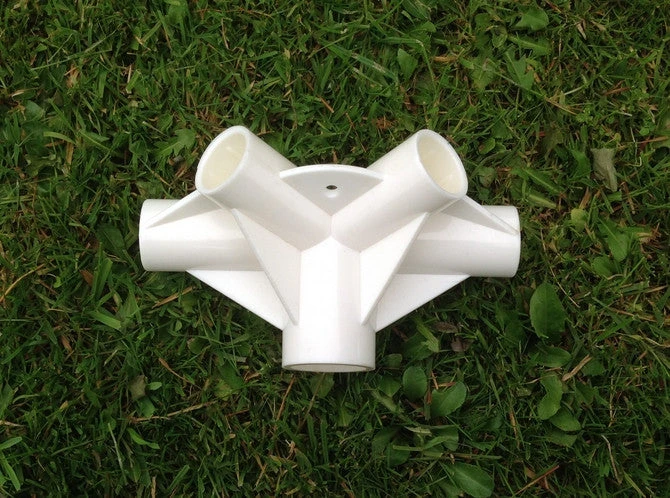

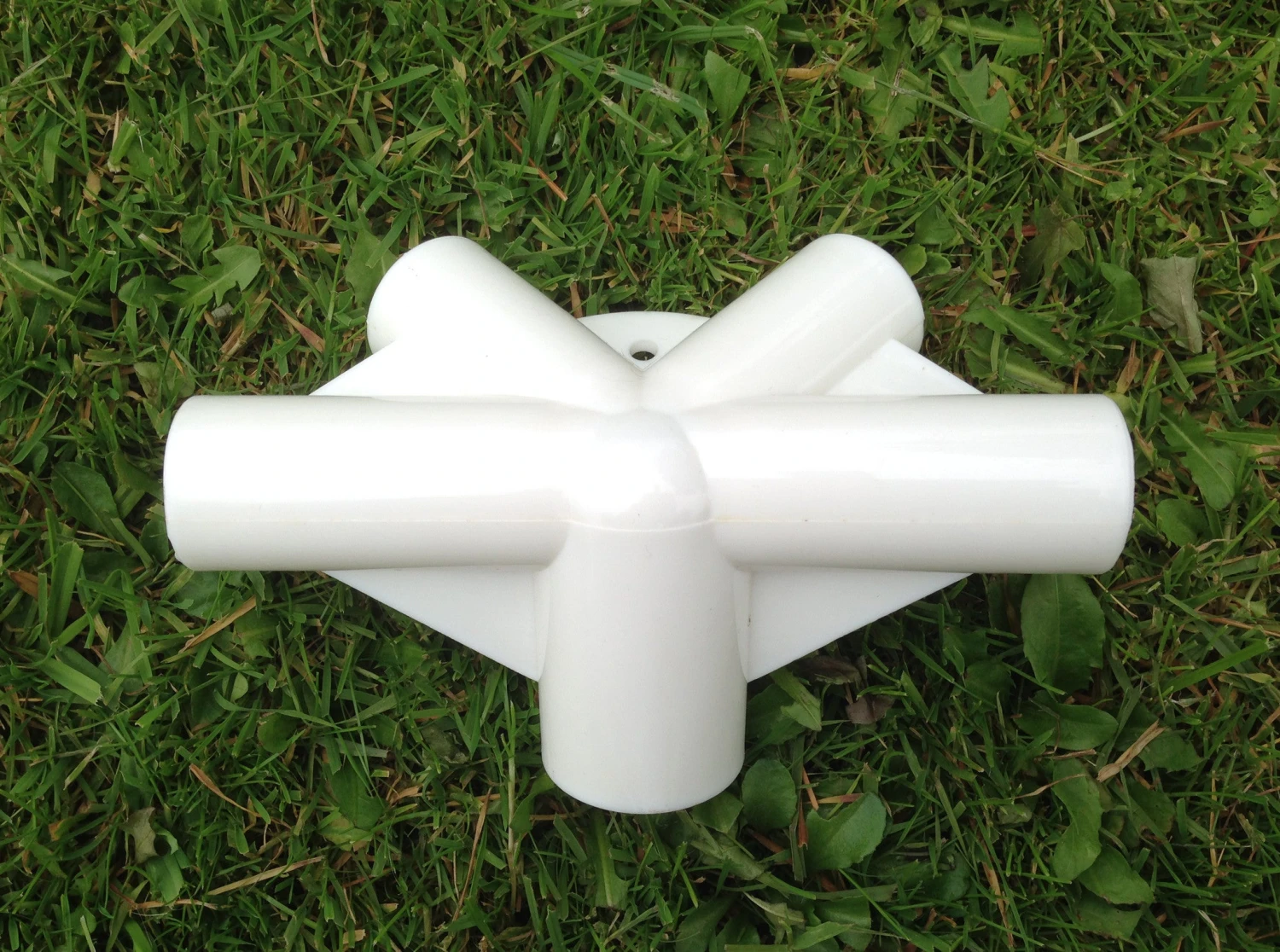

Width: 170mm (measured left to right in pictures 2 and 3)
Depth: 80mm (measured horizontally in upright position)
Centre socket inner diameter: 26mm
Side socket inner diameter: 26mm
Bottom socket inner diameter: 33mm
Side socket angle: 180 degrees angle (to fit the middle leg of a rectangular gazebo)
Bottom socket angle: 90 degrees right-angle (to fit a straight-leg gazebo)

Compatibility:
Argos 3m x 6m Self-assembly Gazebo
2012: Catalogue no. 651/0745*
2011: Catalogue no. 650/8850
May be compatible with other makes, models and sizes

---

Weight:
This item weighs 130g.
To see postage rates please click here.

---

Extra Information:
*Please note: The Argos gazebo with catalogue number 651/0745 was changed at the end of 2012, therefore whilst having the same catalogue number, pre-2013 models are not the same as models from 2013 onwards. Please check year and compatibility above. If unsure please check dimensions.
May also be known as: Corner Bracket, Top Joint, Joining Bracket, 5-pronged Connector

---
